Raw Gas Analysers

Continuous emission monitoring to improve control, operation and efficiencies

Process Gas Analysers

Gas Solutions using an extractive method are particularly appropriate for Process Control application as the gas analysers are not directly exposed to often very difficult and challenging conditions.

All our raw gas analysers are designed for continuous operation and suitable for a wide range of industrial applications.

Raw gas measurements can be extremely valuable to operators, be it for combustion control, monitoring of sulphur or chlorine content of fuel or monitoring efficiency of abatement plant (e.g. lime or bicarb. dosing, SCR SNCR).

A well-considered measurement can optimise performance, highlight when a plant or fuel is out of spec. and reduce the consumption of reagents. As a benefit to a plant / operator, a ‘pay back’ time on investment can be very short for such devices.

All of our Raw Gas analysers are designed for continuous operation and suitable for a wide range of industrial applications. We use a combination of in situ and extractive devices based on our many years of experience. Where appropriate we recommend additional measures (coatings / deflection plates / blow back) to prolong the life and optimise reliability of such installations.

If you have any questions or would like to find out more about our range of raw gas analysers, please contact our friendly team online today and we’ll provide all the information you require.

Typical applications are:

Delta CO (carbon monoxide) measurements for monitoring smouldering fire, e. g. in coal mills, coal silos or baghouse filters
Delta NO (nitric oxide) measurements for denitrification plants control
NH₃ (ammonia) latency measurements at SCR / SNCR systems
HCl (hydrogen chloride)- and SO₂ (sulphur dioxide) measurements in raw gas for the flue gas cleaning systems / desulphurisation plants control
VOC measurement
O₂ (oxygen) measurement for monitoring inerting systems in chemical and pharmaceutical industries.

How do our UVA products operate?

Our devices are composed of light sources, measuring cells and a spectrometer which are all interconnected via an optical path. The emitted radiation is absorbed by the process gas in the measuring cell and is then detected by the spectrometer. This can then determine concentration of the gas. The UVA 17 uses Ultraviolet spectroscopy to measure absorption of the gaseous components of interest.

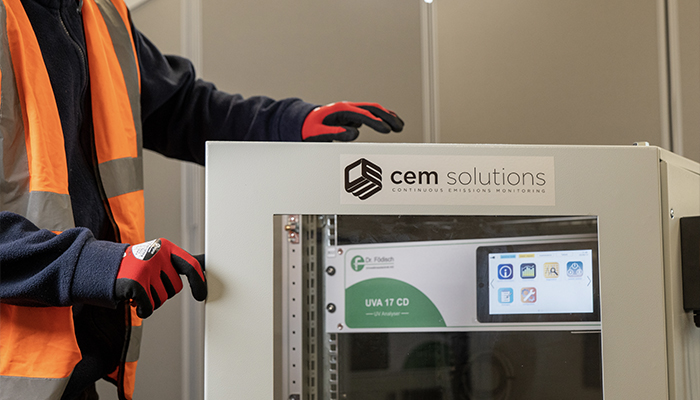

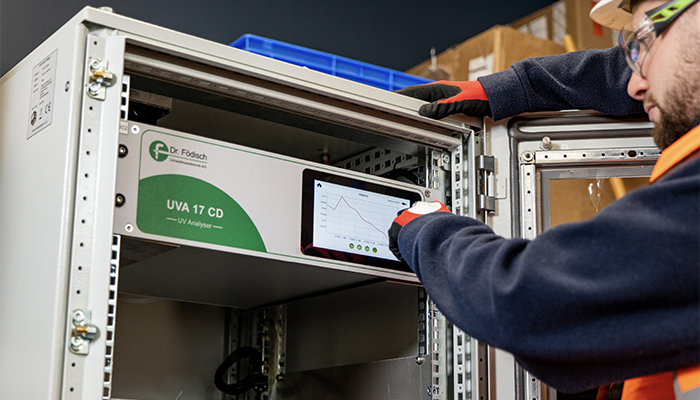

UVA 17 CD

Features of the UV Analyser UVA 17 CD:

Analyser module in 19″ housing;
Continuous measurement of e.g. NO, NO₂, SO₂ and O₂(further components like CH₂O, H₂S, Cl₂ on request);
Modern UV spectrometer (180-400 nm);
O2 measurement based on electrochemical cell;
Integrated measuring gas pump;
Touch display, app-based menu & remote access.

Benefits of the UV Analysers UVA 17 CD:

Small and compact design
Long term stable signal
User friendly interactive display
Remote access capability

UVA 17 CD Data Sheet

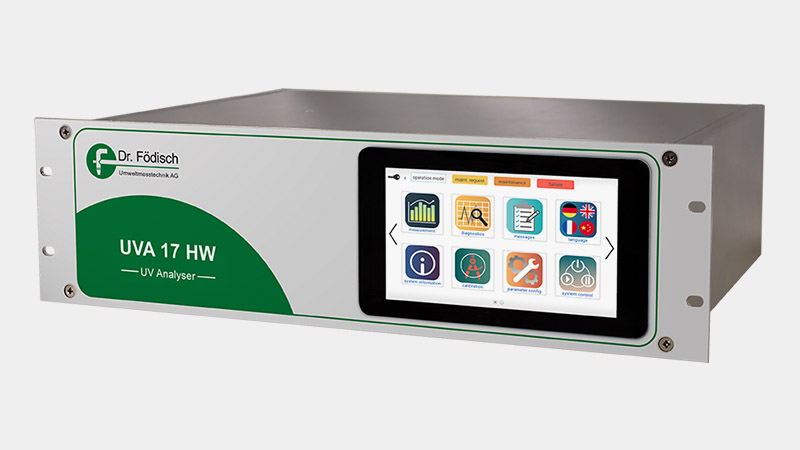

UVA 17 HW

Features of the UV Analyser UVA 17 HW:

Analyser module in 19″ housing;
Continuous measurement of e.g. NO, NO₂, NH₃, SO₂, CH₂O, H₂S, Cl₂, Hg⁰ and O₂
Modern UV spectrometer (180-400 nm);
O₂ measurement based on zirconium dioxide sensor ;
Heated measuring cell (max. 200 °C);
Ejector-based measuring gas conveyance ;
No gas conditioning, no gas cooler necessary;
Touch display, app-based menu & remote access.

Benefits of the UV Analysers UVA 17 HW:

Small and compact design
Long term stable signal
Hot gas measurement up to 200 degrees
Low maintenance
User friendly display
Remote access capability

UVA 17 HW Data Sheet

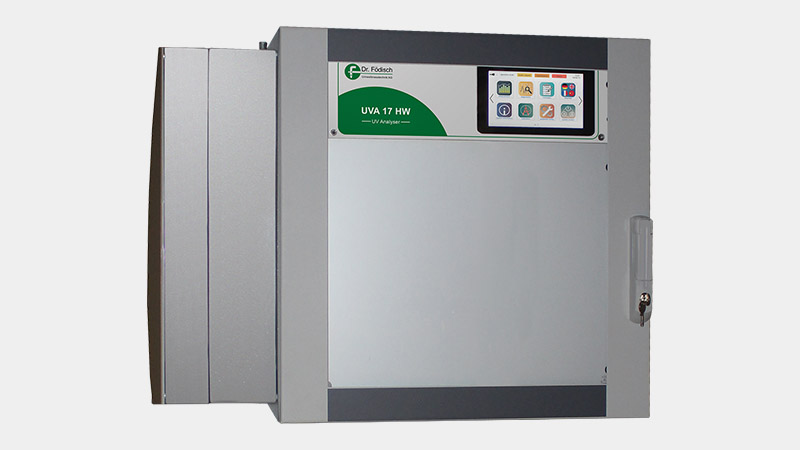

UVA 17 HW c

Features of the UVA 17 HW c:

For process applications (e.g. NO, NO₂, NH₃, after DENOX);
Compact analysis system for wall mounting based on UVA 17 HW;
Air-conditioned, incl. compressed air treatment and power supply;
Short response times due to short sampling paths;
O2 measurement based on zirconium dioxide sensor ;
Heated measuring cell (max. 200 °C);
Low-maintenance measuring gas conveyance by ejector;
No gas conditioning, no gas cooler necessary;
Touch display, app-based menu & remote access;
Extension of measuring components without additional hardware possible.

Benefits of the UV Analysers UVA 17 HW c:

Small and compact design
Long term stable signal
Hot gas measurement up to 200 degrees
User friendly display
Remote access capability

UVA 17 HWc Data Sheet

Why choose CEM Solutions?

CEM Solutions was incorporated in 2012, and we specialise in providing business with a range of products and solutions to help meet their emission monitoring requirements.

We now have over 10 years experience in the industry and an ever-growing UK customer base. Our clients are at the core of the services we offer, and we commit to provide a personal approach that is tailored to your business requirements.

CEM Solutions have a highly skilled team of engineers who are experts in their field and strive to help businesses comply with their emission monitoring regulations.

To discover more about us, or to get in touch with a member of our team, please contact us today with your query and we’ll be happy to assist you.

The benefits of CEM Solutions

Here at CEM Solutions, we have a passionate team that are here to help your business with emission monitoring requirements.

We have the ability to design and install our turnkey solutions which are custom built to your precise requirements. All of the products we use are MCERTS approved and certified. Additionally, we also have a partnership with Dr. Foedisch and are trusted UK suppliers of his industry leading products.

We will consult with you about your requirements, install the equipment and then configure these so they can accommodate your requirements. Additionally, we have 24-hour call-out support on site available should you require our assistance.
