Crematorium Emission Monitoring

We supply a full range of Gas and Dust Emission Monitoring Solutions within the Crematoria industry

CEM Solutions (UK) Ltd have a complete portfolio of instrumentation required to comply with PG5/2 (25).

Process Guidance Note 5/2 (25) is the statuary guidance which must be used by local authority regulators to assess applications and write or modify permits for crematoria.

It is applicable for:

Air emission limits
Emission monitoring methods
Best available techniques to control air emissions

See the latest updates to the PG5/2 here - Crematoria: process guidance note - GOV.UK

Crematoria are a ‘Part B’ activity under the local authority pollution prevention and control (LAPPC) regime.

The CGA12 / CGA20 Gas Monitoring Solution has been specifically designed to help the Crematoria industry continuously monitor emissions from Cremators.

Both CGA 12 and CGA20 Crematoria Emissions Monitoring Systems have been designed specifically to exceed the requirements of this legislation and offer options that would allow expansion to encompass future updates to the Crematoria Guidance.

Our range of Continuous Emission Monitoring Solutions meets and even exceeds the current requirements of the cremation industry.

CGA 12 / 20 systems adopt industry best practices and provides MCERTS certified gas analysers suitable for incineration and combustion processes. Although not explicitly required by PGN 5/2, this provides security should it become a future requirement. It also enables qualitative measurements to be made.

How can we help support applications in the Crematoria sector?

Complete Gas & Dust Continuous Emission Monitoring solution including:

Gas analysers to continuously monitor the exhaust gas of the cremator (CGA12 for CO & O2, CGA20 for CO, O2 & NOx)
Dust/Particulate monitors to continuously monitor the Dust/Particulate content coming out of the cremator
Data Acquisition & Handling System (DAHS) providing easy access to process data, daily trends and generating reports for compliance

Whatever the process, it is likely that a measuring system will be required. Furthermore, the CGA 12 System can continuously measure CO & O2 on two streams (cremators) without requiring a second gas analyser.

How can we help the crematoria sector?

Compact design

The system is supplied in a wall mounted cabinet, suitable for mounting in locations where space is at a premium.

Air Conditioning Module

By regulating the temperature inside the CEM panel, performance can be optimised.

MCERTS certification

Specified analysers are MCERTS approved, conforming to BAT across Incineration and Combustion processes. This gives the option of providing quantitative values that go above and beyond the qualitative that are currently specified.

Total Hydrocarbons (VOC) Measurement

We have allowed for provision of the addition of a VOC analyser. A suitable MCERTS approved gas analyser using Flame Ionisation Detectors (FID) is an option which can be added into the CEM system, either from the beginning or at a later date.

Data Acquisition & Handling System (DAHS)

CEMWare has been specifically designed to record data from Part B processes. Live data and trend data are available in a secure user-friendly interface. Automatic alarms can be configured and monitored both locally and remotely. This class-leading reporting package will generate periodic reports in the format required by the local authority.

Particulate Matter / Dust

Particulate monitors are available in various forms, tribo-electric probes are most popular for post abetment measurements, both qualitative and quantitative (certified) measurements are available (PFM13C & PFM20)

Secondary Combustion Oxygen (O2)

Industry proven zirconia based O2 probes can be supplied for combustion control, typically mounted in secondary combustion chamber, an essential measurement to control and improve combustion efficiency.

Case Studies

Read the latest Crematoria Case Studies from CEM

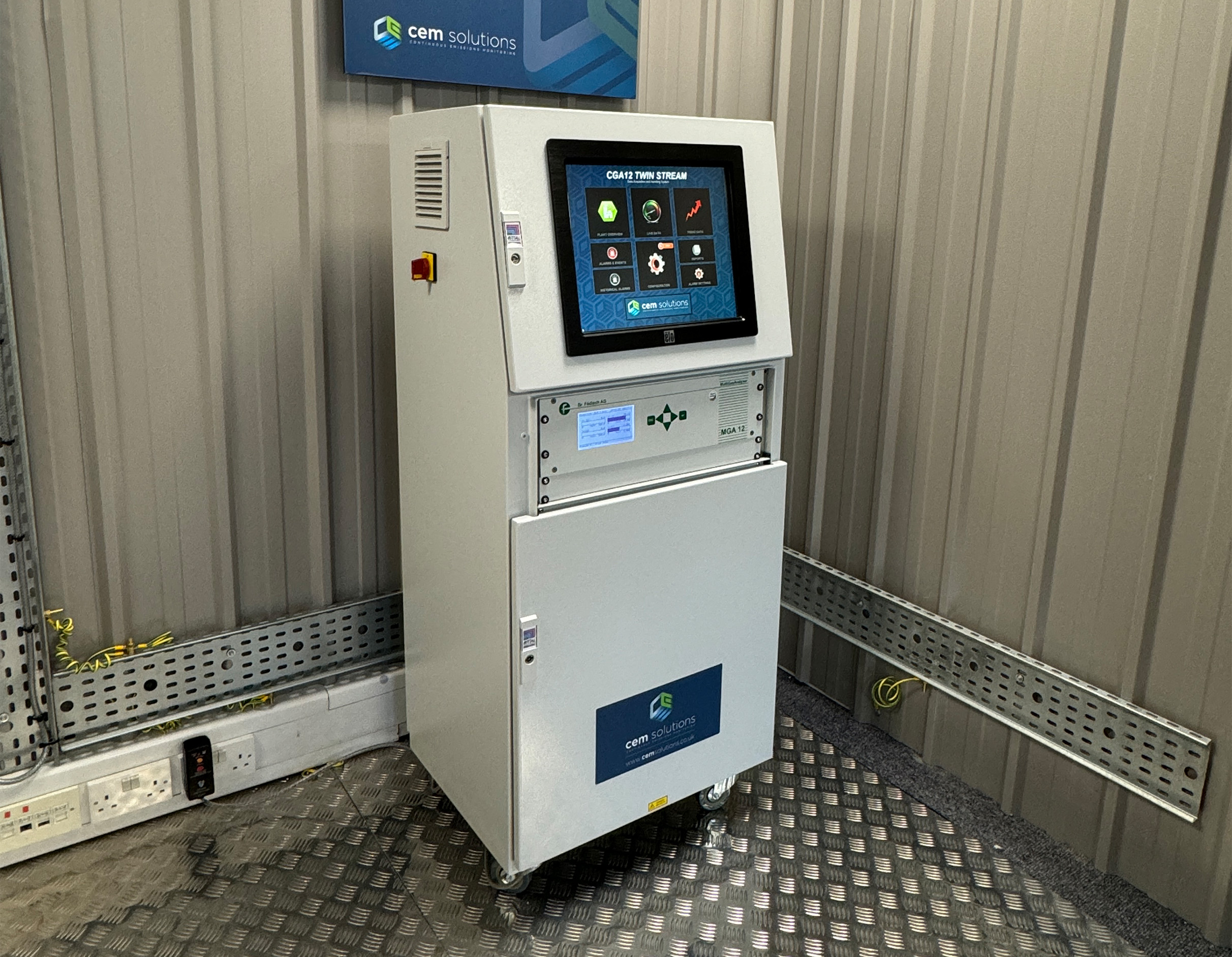

CGA 12 Crematorium CEM System

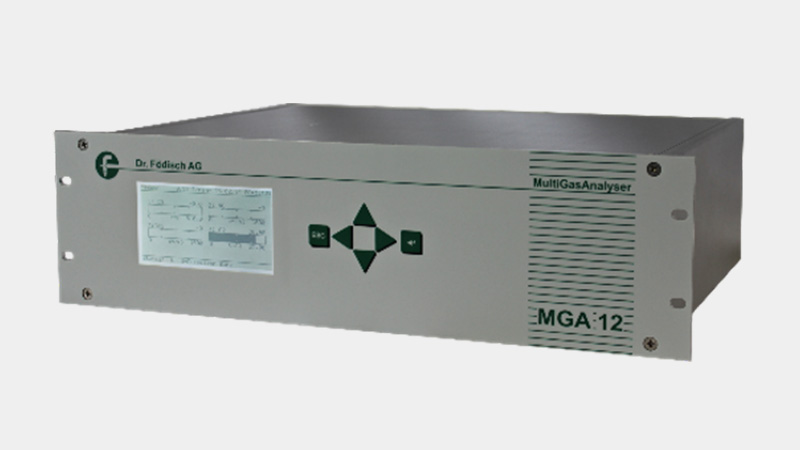

MGA12 CO & 02 Gas Analyser

Cold-dry gas analysis
QAL1 according to EN 15267-3
5 components
Compensation for temperature, pressure and water cross sensitivities
Low maintenance requirement

Data Sheet

CEMWare DAHS

17” Touch Screen Display
View live and historical trend data
Remote options by local network/ Mobile App
Export logged data to Excel, .csv or text file
Flexible input/output selection
Audio/Visual Alarms

Data Sheet

PFM 13C Dust Monitor

Suitable for Local Authority Part B permitted sites.
Compact design (with optional display), low service requirements, and a low cost solution.
Suitable for foundries, quarries, metal recycling, bag-filter plants, road-stone dryers & coating plants

Data Sheet

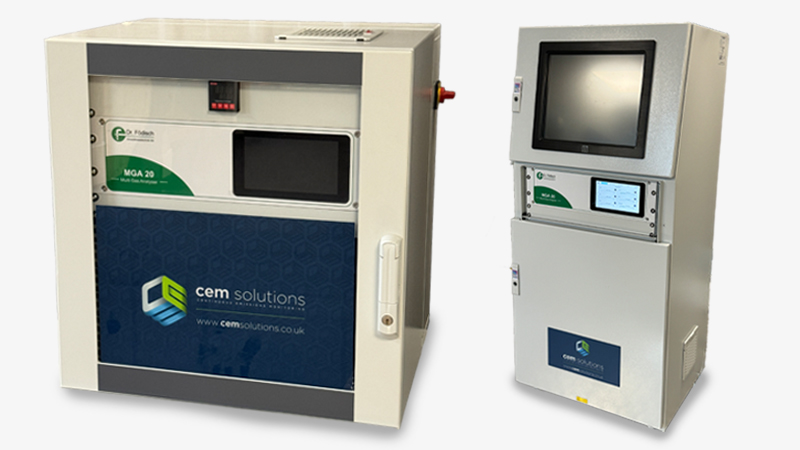

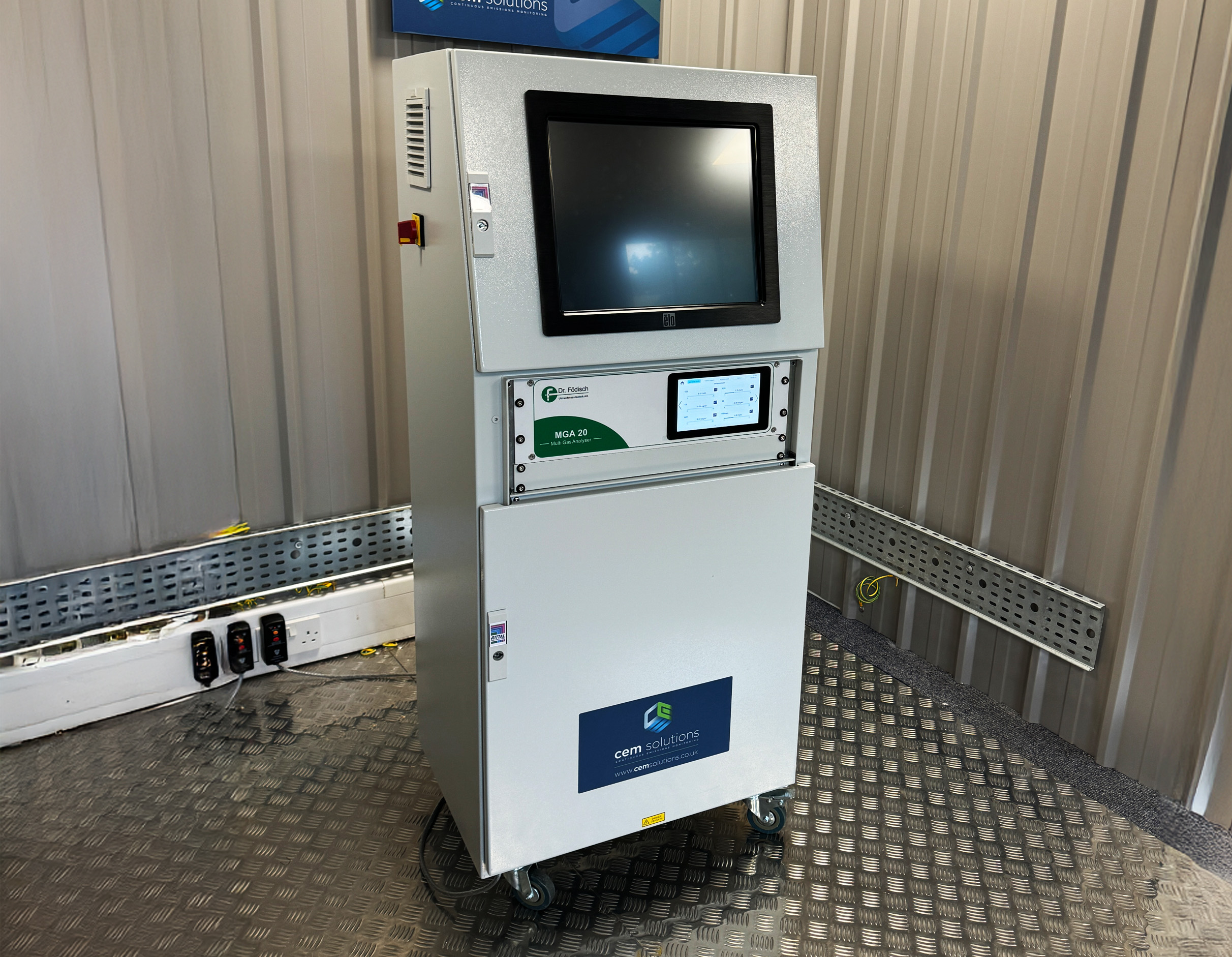

MGA20 CO, NOx & O2 Gas Analyser

MCERTS Certified CO, NOx & O2 analyser
Cold dry gas analysis
Advanced IO with remote connection
Compensation for temperature, pressure and water cross sensitivities
Low maintenance / cost of ownership
Available in wall mount and floor standing panels

Data Sheet

Crematoria News & Blogs

Find out more about our activities in the cremation sector:

APSE 2025

ICCM 2025

CBCE 2026

Why choose CEM Solutions?

CEM Solutions was incorporated in 2012, and we specialise in providing business with a range of products and solutions to help meet their emission monitoring requirements.

We now have over 10 years experience in the industry and an ever-growing UK customer base. Our clients are at the core of the services we offer, and we ensure to provide a personal approach that is tailored to your business requirements.

CEM Solutions have a highly skilled team of engineers who are experts in their field and strive to help businesses comply with their emission monitoring regulations.

To discover more about us, or to get in touch with a member of our team, please contact us today with your query and we’ll be happy to assist you.

The benefits of CEM Solutions

Here at CEM Solutions, we have a passionate team that are here to help your business with emission monitoring requirements.

We have the ability to design, manufacture and install  turnkey solutions  from our UK production facility. These are custom built to your precise requirements. All of the products we use are MCERTS approved and certified. We work closely with trusted suppliers of industry leading products, such as ABB UK & Fuji.

We service & calibrate CEMS throughout the UK within a variety of maintenance contracts, arranged at intervals to comply (as a minimum) with manufacturers’ recommendations and MCERTS certified intervals, typically biannually or quarterly. These contracts can include 24-hour phone support and next day call-out if required.
